Best seller
Request a quote
Best seller
Model
DLR03
Upright tube
75 × 75 × 3.0 mm steel
Hole spacing
50 mm, Westside pattern
The DLR03 is the rack we recommend for any floor where squats are performed without a spotter. The four-post design uses 75 × 75 mm tube with three-millimetre wall thickness — the specification that keeps a rack rigid when a bar is racked under load.
Hole spacing is 50 mm through the working range so the safety arms can be set precisely, and the Westside-style hole pattern gives additional attachment options. J-hooks and safety arms are lined with replaceable UHMW polyethylene, which protects both the bar knurl and the hook.
Band pegs, plate storage pins and a chin-up bar are integrated. Bolt-together construction keeps shipping volume reasonable and lets the rack be relocated if the floor plan changes.
| Model | DLR03 |
|---|---|
| Upright tube | 75 × 75 × 3.0 mm steel |
| Hole spacing | 50 mm, Westside pattern |
| Load rating | 450 kg |
| Dimensions (L × W × H) | 1200 × 950×2250 mm |
| Net weight | 186 kg |
| Packing volume | 1.1 CBM per unit |
| Finish | Powder coat, textured black or custom RAL |
| Model | DLR03 |
| Application | Commercial gym, strength studio |
| Loading type | Free weight |
| Material | Heavy-wall steel tube |
| MOQ | 10 units |
| Lead time | 25–35 days after deposit and drawing approval |
| Warranty | 12 months on frames and components |
| Colour | Customisable — RAL or Pantone reference |
| Branding | Logo plate, decal or embroidered upholstery tag |
Specifications are current at the time of publication and may be revised without notice. Confirmed dimensions are issued on the order drawing before production. Packing volume is indicative — ask us for the container loading plan specific to your quantity mix.
- Four-post design in 75 × 75 × 3.0 mm heavy-wall tube
- 50 mm hole spacing through the working range
- J-hooks and safety arms
- chin-up bar
- Bolt-together construction for easy relocation
This model is specified for the following environments:
Commercial fitness clubsBoutique strength studiosSports academiesMilitary and emergency-service gymsUniversity and school facilities
Sizing the whole floor rather than one machine? Send a floor plan and we will propose a station count for your membership and traffic pattern.
Equipment is packed for sea freight as standard: frames foam-wrapped, panels edge-protected, hardware bagged and labelled per unit, then steel-banded onto pallets.
- Assembled or knocked-down packing depending on model and container utilisation
- Container loading plan issued before booking, with supervised loading photographs
- FOB, CIF, CFR, DAP and DDP terms available — tell us the port and we will quote all of them
- Wood packaging with IPPC heat treatment marks where required by destination
Commercial equipment earns its money over years, so our support is organised around keeping a floor running rather than closing a sale.
- Warranty: 12 months on frames and components. Terms are confirmed in writing on the order.
- Spare parts: cables, pulleys, bearings, pads and hardware held against every order number.
- Documentation: assembly manual, torque table and parts diagram supplied per model.
- Installation: remote support as standard; on-site supervision available for full fit-outs.
Benches & Racks

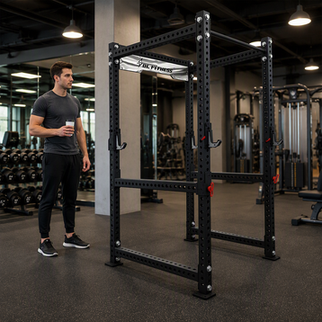

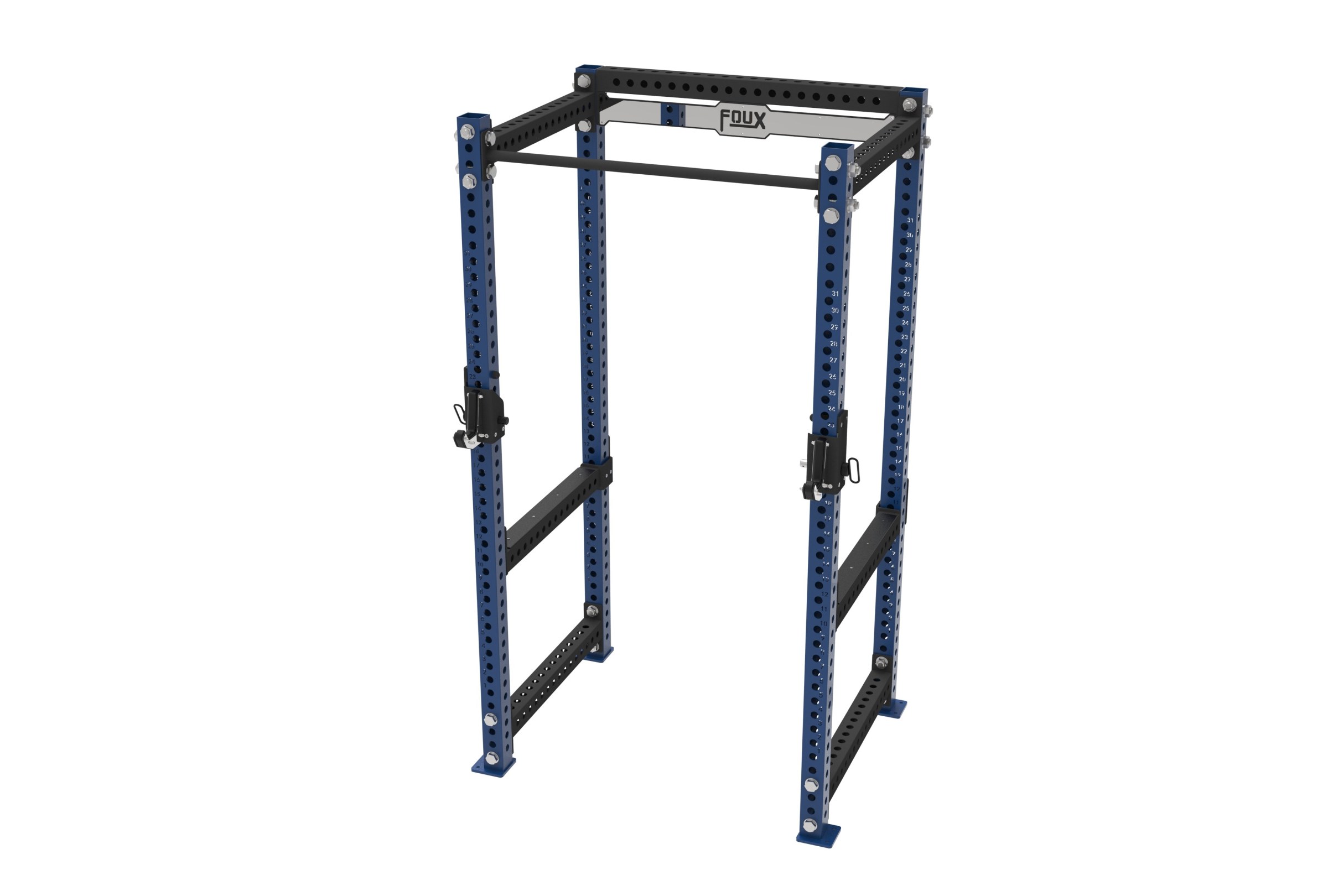

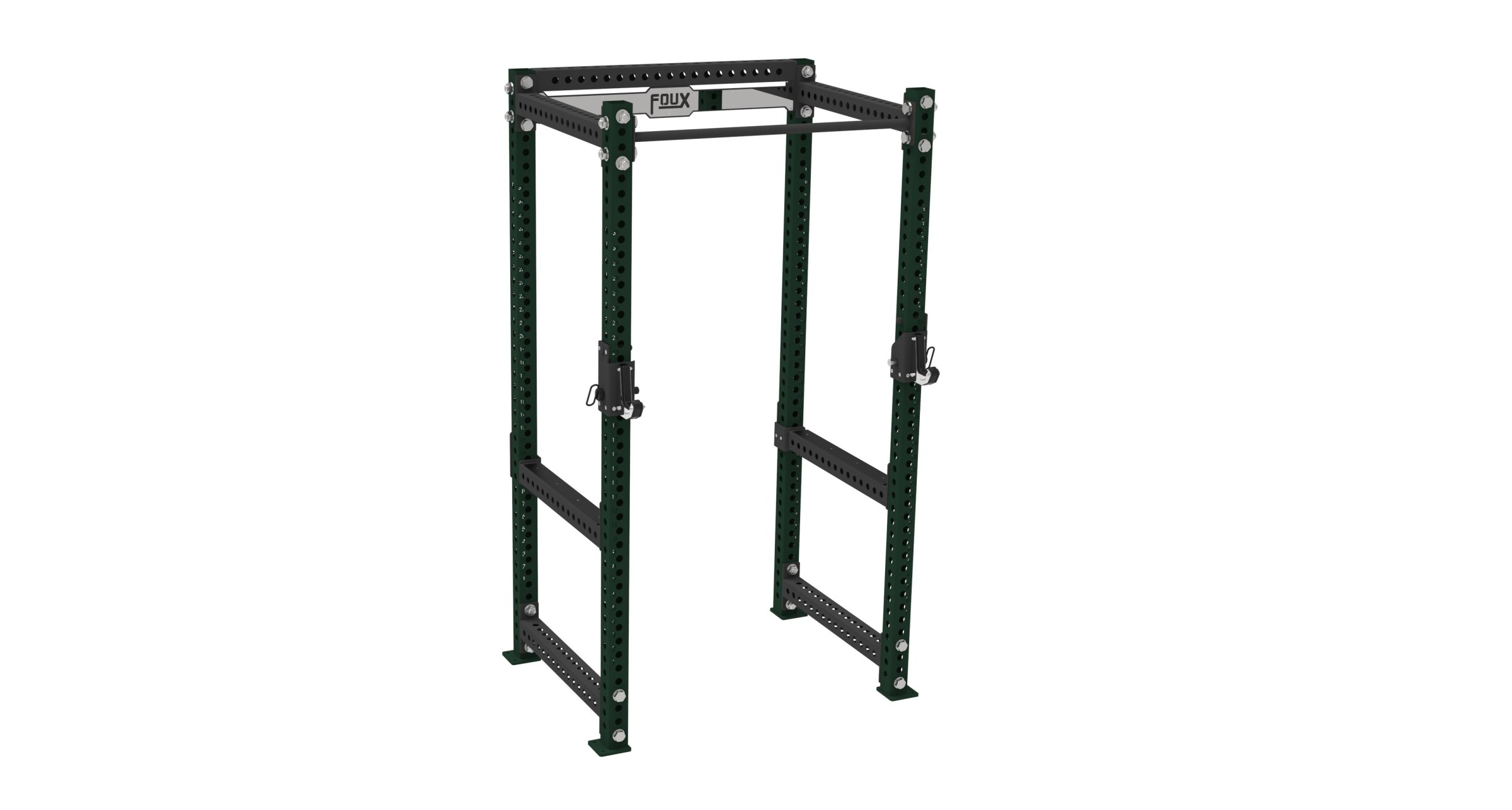

Commercial Power Rack
MODEL DLR03
Four-post power rack in 75 × 75 mm heavy-wall tube with 50 mm hole spacing, UHMW-lined J-hooks and an integrated band peg system.
Four-post design in 75 × 75 × 3.0 mm heavy-wall tube
50 mm hole spacing through the working range
J-hooks and safety arms
chin-up bar
Request a quotation
Pricing for Commercial Power Rack — reply within one working day.
MOQ
10 units
Lead time
25–35 days after deposit and drawing approval
Prefer to talk?
Also consider
Machines that pair with this one
Benches & Racks
Adjustable Weight Bench
- Model
- DLB-4002
- Model
- DLB-4002
- Backrest range
- 0–85°, 8 positions
- MOQ
- 20 units
Best seller
Request a quote
Benches & Racks

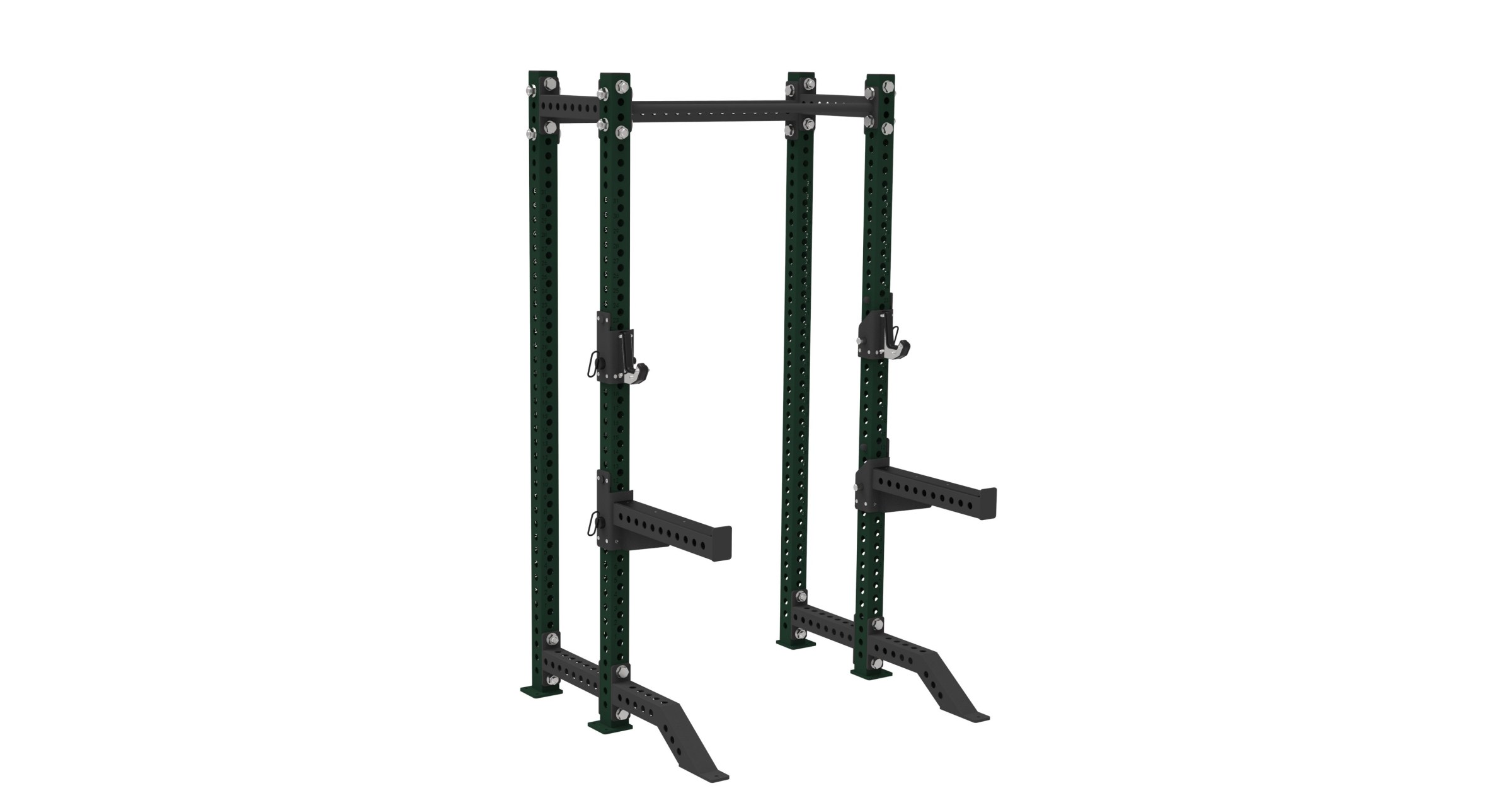

Half Rack with Integrated Cable Station
