Quality Control From Production to Shipment
Quality & certifications

Quality Control From Production to Shipment

A commercial floor finds every weakness eventually. Our inspection routine exists so that it finds them in our workshop instead — eight documented checkpoints from incoming steel to the container door.

Every unit inspected, not sampled Records filed against your order number Third-party inspection welcome
Inspection route

Eight checkpoints, in the order the product meets them

Each checkpoint has a pass criterion and a record. If you buy regularly, ask for the inspection pack on your next order — it is already being produced.

01

Incoming material

Wall thickness, tube straightness, plate gauge and supplier certificates checked against specification.

02

Welding

Weld length, penetration appearance, spatter removal and jig dimensional check on every frame batch.

03

Surface & coating

Pre-treatment condition, dry film thickness, colour against the approved sample and adhesion test on coupons.

04

Assembly

Hardware torque, bearing seating, cable routing and stack alignment verified against the build sheet.

05

Function test

Full range of motion, adjustment travel, cable tension, pulley alignment and smoothness under no load.

06

Load test

Rated-load and overload checks on frames, weight horns, seats and cable systems before release.

07

Final inspection

Product appearance, decals, labelling, completeness and accessories photographed against your order.

08

Packing check

Protection layers, carton integrity, quantity reconciliation and container plan sign-off.

Documentation

Certifications, patents and test reports

Certificates and reports are supplied as PDF copies on request. We publish only documents we actually hold — nothing is listed here because it looks reassuring.

Design Patents

Registered design patents covering our own multifunction and plate-loaded platforms, filed in respect of the structural and ergonomic features we develop in-house.

Issued by
China National Intellectual Property Administration
Scope
Multifunction and plate-loaded equipment platforms
PDF available on request

Registered Trademarks

Registered word and device marks covering our brand and model naming, held in the classes relevant to fitness equipment manufacture and sale.

Issued by
China National Intellectual Property Administration
Scope
Fitness equipment, classes 28 and 35
PDF available on request

Product Test Reports

Static load, stability and function test reports generated on our own platforms and available as copies on request, including rated-load verification for racks and presses.

Issued by
Third-party testing laboratory
Scope
Selected models, per report
PDF available on request

Material & Coating Records

Steel mill certificates for incoming tube and plate, plus dry film thickness and adhesion test results from the powder coat line, retained per production batch.

Issued by
Internal quality control, supported by supplier certificates
Scope
All production batches
PDF available on request

Load and Stability Testing

Static load testing at 150 percent of rated capacity, plus stability checks under uneven loading, recorded per model before a new line is released.

Issued by
Internal quality control, recorded per model
Scope
All new models and any model with a specification change
PDF available on request

Welding and Coating Process Records

Welder qualification records, weld inspection at high-load junctions, and coating thickness and adhesion checks retained by production batch.

Issued by
Internal quality control, supported by supplier certificates
Scope
All production batches
PDF available on request

Importing into a regulated market?

Requirements differ by destination, product class and buyer. Tell us the country and the intended use and we will confirm which documentation we can provide, which third-party testing is required, and who arranges it.

Consumables

Frames last. Cables, pads and bearings do not.

A gym's real cost of ownership is consumables and downtime, not the purchase price. Every order is filed with its component list so that a cable bought two years later is the same cable.

  • Standardised cables, pulleys, bearings and pads across a platform family
  • Spare-part list with part numbers issued with every order
  • Replacement pads and upholstery available separately
  • Maintenance guidance written for in-house technicians

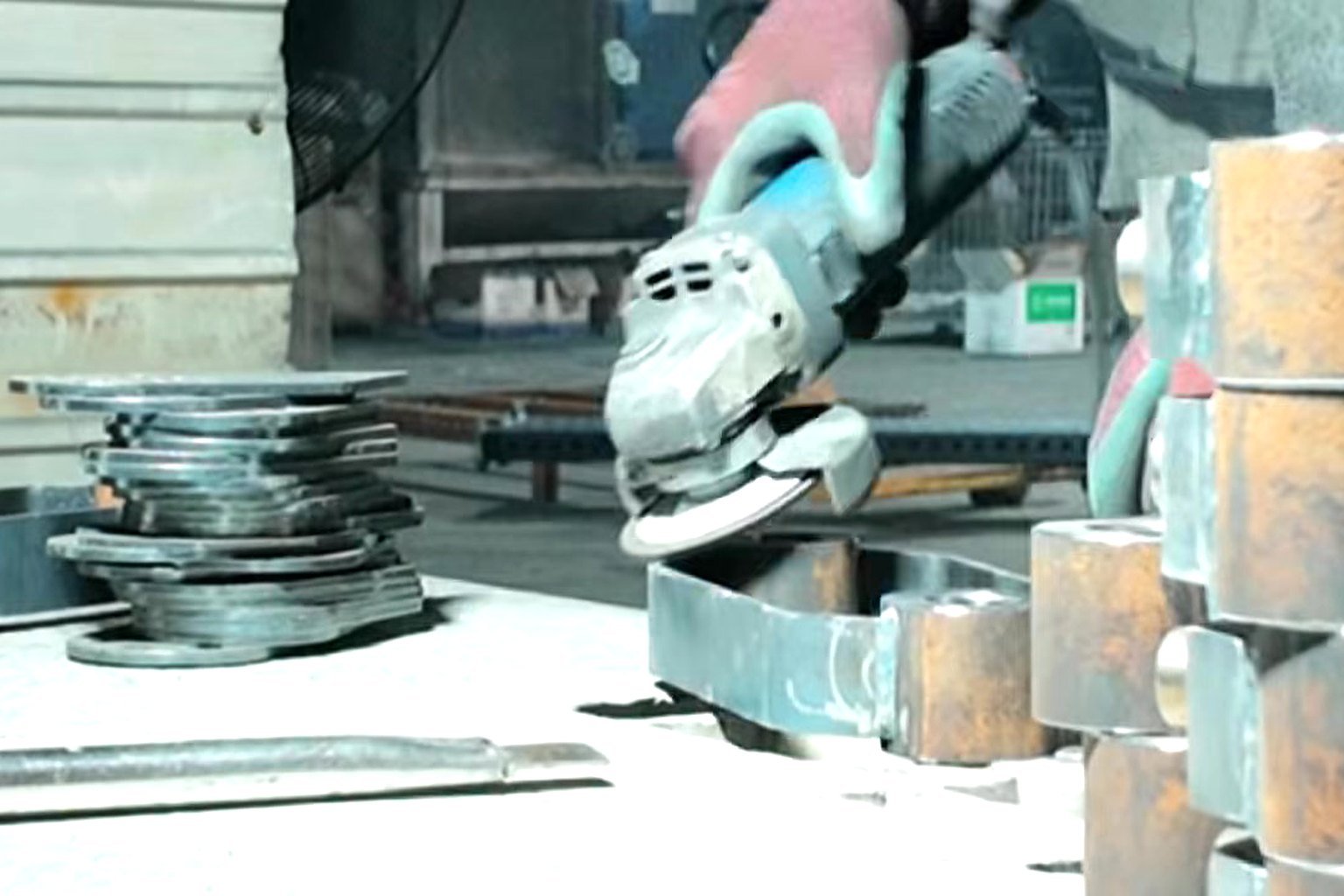

Detail inspection of weld, coating and cable assembly
Ask for the inspection pack on your next order
Next step

Ask for the inspection pack on your next order

Welding, coating, assembly and function records, filed against your order number and available as PDF.
