Best seller
Request a quote
Strength Training Equipment
Multifunction Power Tower Smith Machine
- Model
- DLR19
- Model
- DLR19
- Frame tube
- 60 × 60 × 3.0 mm carbon steel
- MOQ
- 5 sets
Best seller
Model
DLR18
Frame tube
75 × 75 × 3.0 mm heavy-wall steel
Guide rails
Hardened stainless steel, sealed linear bearings
The DLR18 consolidates four training stations into a single footprint. The Smith bar runs on hardened stainless guide rails with sealed linear bearings, so the travel stays true even after thousands of cycles, and a counterbalanced bar makes light loads workable for rehab and warm-up sets.
The integrated cable columns carry twin 80 kg stacks in a 1:2 ratio. That means an effective 160 kg of resistance per side with fine increments — enough for a strong press and still smooth at the bottom of a fly. Pulley blocks are machined aluminium with sealed bearings, not cast plastic.
Adjustment is where cheap multifunction machines give themselves away. Every position on the DLR18 locks positively using spring-loaded pins with a knurled grip, and the safety hooks have replaceable UHMW-PE liners so both the bar and the hook survive contact.
| Model | DLR18 |
|---|---|
| Frame tube | 75 × 75 × 3.0 mm heavy-wall steel |
| Guide rails | Hardened stainless steel, sealed linear bearings |
| Weight stacks | 2 × 80 kg, 1:2 cable ratio |
| Bar capacity | 300 kg rated |
| Dimensions (L × W × H) | 2,340 × 1,780 × 2,290 mm |
| Net weight | 488 kg |
| Gross weight | 538 kg |
| Packing volume | 1.2 CBM per set |
| Finish | Multi-stage pre-treatment, electrostatic powder coat |
| Upholstery | Fire-retardant vinyl, replaceable pad panels |
| Model | DLR18 |
| Application | Commercial gym,Home, studio, hotel gym |
| Loading type | Weight stack plus free-weight bar |
| Material | Heavy-wall steel tube, stainless guide rails |
| MOQ | 20 sets |
| Lead time | 40-50 days after deposit and drawing approval |
| Warranty | 12 months on frames |
| Colour | Customisable — RAL or Pantone reference |
| Branding | Logo plate, decal or embroidered upholstery tag |
Specifications are current at the time of publication and may be revised without notice. Confirmed dimensions are issued on the order drawing before production. Packing volume is indicative — ask us for the container loading plan specific to your quantity mix.
- Stainless steel guide rails with sealed linear bearings for true bar travel
- Twin 80 kg weight stacks, 1:2 ratio, magnetic pin selection
- Counterbalanced Smith bar for light-load and rehab work
- Spring-loaded positive-lock adjustment at every position
- Replaceable UHMW-PE liners on safety hooks and bar catches
- Laser-cut hole spacing at 50 mm for rack attachments
This model is specified for the following environments:
Commercial fitness clubsHome and garage gymsBoutique strength studiosHotel and resort gymsResidential amenity floorsSports academies
Sizing the whole floor rather than one machine? Send a floor plan and we will propose a station count for your membership and traffic pattern.
Equipment is packed for sea freight as standard: frames foam-wrapped, panels edge-protected, hardware bagged and labelled per unit, then steel-banded onto pallets.
- Assembled or knocked-down packing depending on model and container utilisation
- Container loading plan issued before booking, with supervised loading photographs
- FOB, CIF, CFR, DAP and DDP terms available — tell us the port and we will quote all of them
- Wood packaging with IPPC heat treatment marks where required by destination
Commercial equipment earns its money over years, so our support is organised around keeping a floor running rather than closing a sale.
- Warranty: 12 months on frames. Terms are confirmed in writing on the order.
- Spare parts: cables, pulleys, bearings, pads and hardware held against every order number.
- Documentation: assembly manual, torque table and parts diagram supplied per model.
- Installation: remote support as standard; on-site supervision available for full fit-outs.
Strength Training Equipment

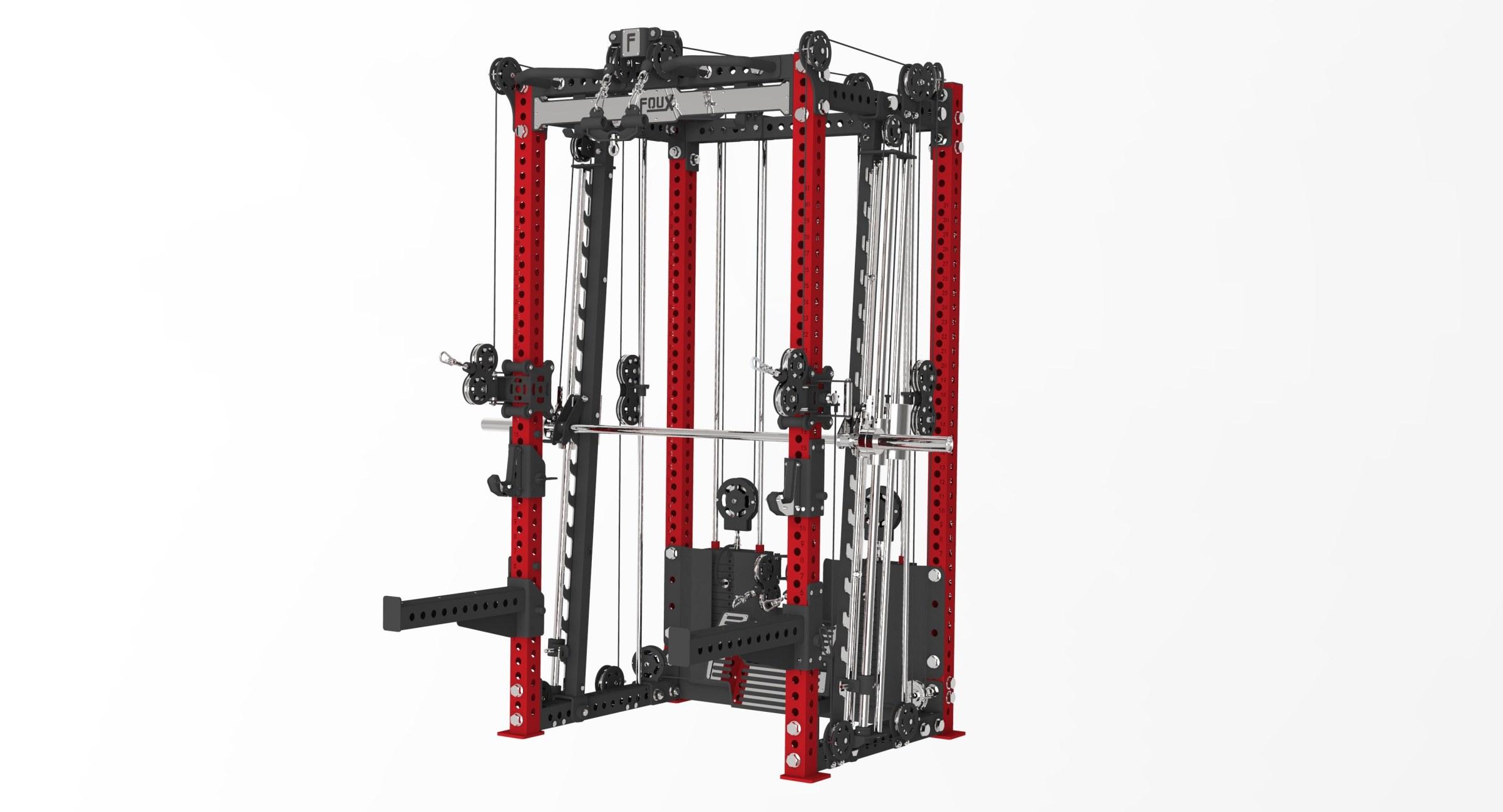

Commercial and Home Multifunction Smith Machine
MODEL DLR18
A full Smith machine with integrated cable crossover, dual 80 kg weight stacks and a stainless steel guide rail system — one platform that covers squat, press, pulldown and cable work.
Stainless steel guide rails with sealed linear bearings for true bar travel
Twin 80 kg weight stacks, 1:2 ratio, magnetic pin selection
Counterbalanced Smith bar for light-load and rehab work
Spring-loaded positive-lock adjustment at every position
Request a quotation
Pricing for Commercial and Home Multifunction Smith Machine — reply within one working day.
MOQ
20 sets
Lead time
40-50 days after deposit and drawing approval
Prefer to talk?
Also consider
Machines that pair with this one
Strength Training Equipment

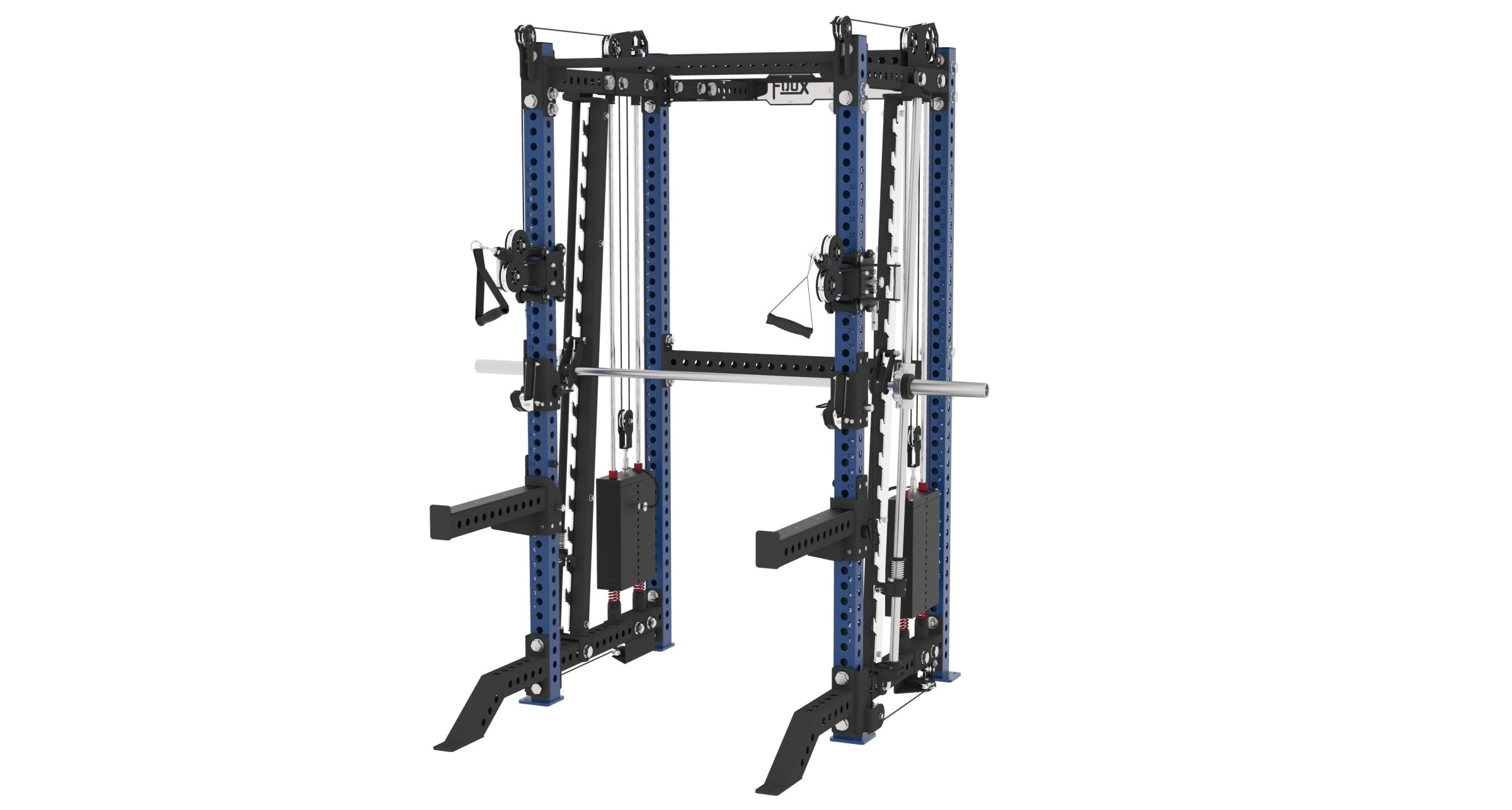

Multi Functional Smith Machine with Integrated Weight Stack
- Model
- DLR04
- Model
- DLR25
- Frame tube
- 75 × 75 × 3.0 mm steel, stainless working surfaces
- MOQ
- 20 sets
Low ceiling
Request a quote
Strength Training Equipment

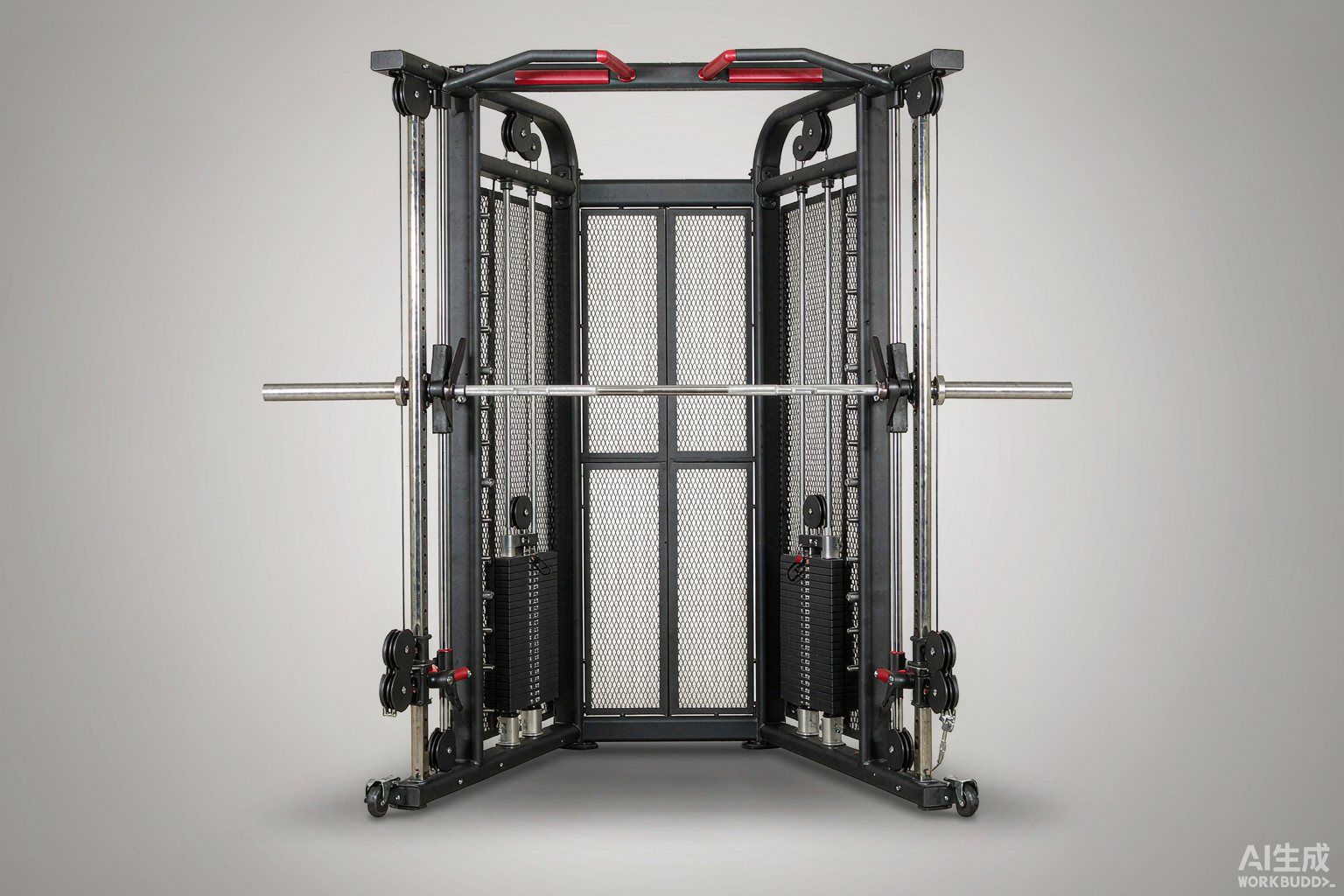

Compact Multifunction Smith Machine
- Model
- DLR20
- Model
- DLR20
- Frame tube
- 70 × 70 × 3.0 mm heavy-wall steel
- MOQ
- 5 sets
Best seller OEM ready
Request a quote
Strength Training Equipment

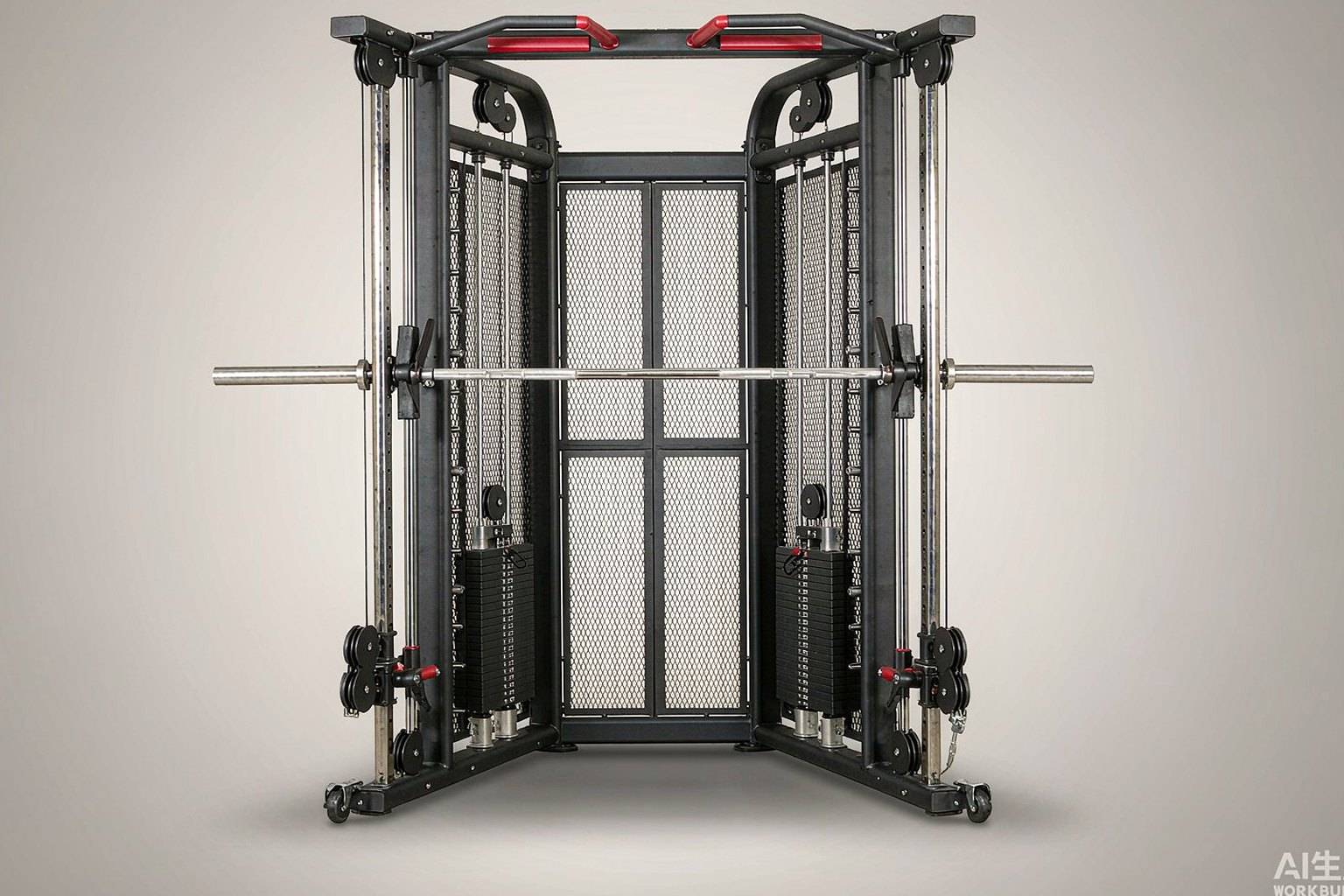

OEM Multifunction Smith Machine
- Model
- DLR08
- Model
- DLR08
- Frame tube
- 75 × 75 × 3.0 mm heavy-wall steel
- MOQ
- 20 sets
Ordering
Buying questions we answer every week
Photograph the container condition before unloading where possible, and record any shortage or damage on the delivery receipt. Send us the photographs, the packing list and the container number and we will investigate against our loading records and resolve it with you directly. Loading photographs are taken specifically so this process is quick.
Yes. Every order is filed with its component list, so a cable or pad bought two years later is the same part. Cables, pulleys, bearings and pads are standardised across a platform family, which keeps stock practical. Less common components may require a production run, and we will state the lead time honestly.
Ratings are published per model and appear in the specification table on each product page — typically 250 to 500 kg for racks and presses, and 180 kg user rating for cardio. Ratings are verified in our load testing rather than estimated. If you need a rating for a structural assessment or a tender, we will supply it in writing.
Yes. We match frame powder coat and upholstery vinyl to a RAL, Pantone or physical sample, and retain the approved coupon for repeat orders. This is common for hotel and residential projects where the gym needs to read as part of the interior rather than an addition to it.
Yes, and we would rather you specified them at the same time. Flooring, storage walls, racks, mats, kettlebell sets, medicine balls, ropes, collars and attachments all ship in the same container, matched in quantity to the machines you have ordered. Buying accessories locally afterwards usually costs more and arrives in the wrong specification.
